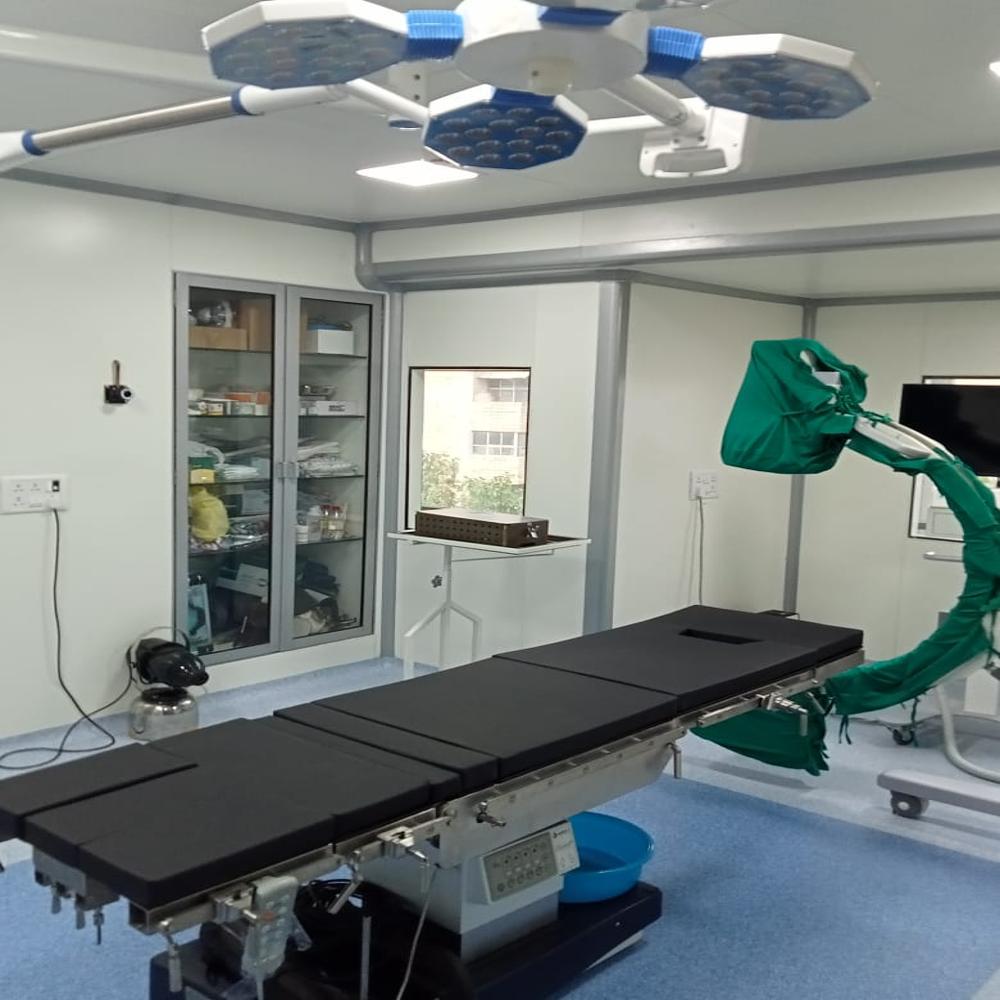

AHU LESS MODULAR OT

Name: AHU LESS MODULAR OT
Brand: ENVIRONS FILTER
Price: 500000.0 INR
Availability: InStock

Price 500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

AHU LESS MODULAR OT Specification

Humidity Range
30%-70% RH adjustable

Phase
Single Phase

Product Type
AHU Less Modular OT

Suitable For
Modular Operation Theatres

Application
Operation Theatre

Accuracy
1% (Control Parameters)

Shape
Rectangular/Cuboidal

Treatment Type
HEPA Filtration/Antimicrobial Surface

Color Code
White / Custom Color Options

Use
Air Handling & HVAC for OT

Weight
Approx. 750 kg

Temperature Range
16C to 26C (Adjustable)

Frequency
50 Hz

Function
Clean Air Delivery, Filtration, Humidification/Dehumidification

Properties
Microbe and contaminant control, energy efficient, low noise

Height
2600 mm

Display Type
LED/LCD

Automation Grade
Automatic/Semi-Automatic

Dimension (L*W*H)
3350 x 2350 x 2600 mm

Material
Powder Coated Steel/SS

Power
1.5 kW

Voltage
220-240 V

Display
Digital Control Panel

Power Source
Electric

Air Volume
3200-5000 CFM

Return Air Grille
Provided

Bacteria Filtration Efficiency
>/= 99.97% (0.3 micron)

Frame Material
Aluminium Anodized/SS

Filtration Stage
Pre, Fine, HEPA (3 Stage)

Fresh Air Intake
Yes

Energy Efficiency
Class A Motor

Air Velocity
0.25-0.5 m/s at Grill

Insulation Material
PUF Panel, 43 Kg/m3

Lighting
LED Shadowless

Door Type
Hermetically Sealed Sliding/Swing

Fan Type
Backward Curved/Direct Drive

Fire Resistance
Class 1/A ASTM Certified

Noise Level
<65 dB(A)

Cleanliness Level
Class 100/ISO 5

Panel Thickness
50 mm/80 mm

AHU LESS MODULAR OT Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
1 Week

About AHU LESS MODULAR OT

An AHU-less (or "ductless") modular operating theatre (MOT) is

a specialized surgical suite designed for environments with severe space constraints, offering a self-contained, high-efficiency, and sterile environment without the need for large, traditional roof-mounted Air Handling Units (AHUs) or extensive ductwork. It is a turnkey, pre-fabricated solution designed to meet stringent NABH (National Accreditation Board for Hospitals & Healthcare Providers) and ISO standards in smaller clinics, dental practices, or retrofitted spaces.

Advanced Multi-Stage Filtration System

This AHU integrates pre, fine, and HEPA filters in a robust three-stage configuration, efficiently removing particulates and microbes, ensuring a highly sterile environment. Its HEPA filtration stage captures contaminants as small as 0.3 microns with a remarkable efficiency of 99.97%. This makes the unit an ideal choice for operation theatres requiring Class 100/ISO 5 cleanliness standards.

Energy Efficient and Quiet Operation

Fitted with a Class A energy-efficient motor and backward curved or direct drive fans, the AHU LESS MODULAR OT guarantees powerful air handling while keeping noise below 65 dB(A). The superior PUF panel insulation minimizes energy loss, providing cost-effective performance without compromising comfort within operation theatres.

Intelligent Environmental Control

The AHU is equipped with a digital control panel featuring LED or LCD display, allowing precise regulation of temperature (16C-26C) and humidity (30%-70% RH, 1% accuracy). Combined with LED shadowless lighting and antimicrobial surfaces, this makes for an uncompromisingly clean and controlled operating environment.

FAQ's of AHU LESS MODULAR OT:

Q: How does the AHU LESS MODULAR OT ensure microbial and contaminant control in operation theatres?

A: The unit utilizes a three-stage filtration process-Pre, Fine, and HEPA-capturing particulates, bacteria, and other microorganisms. Its HEPA filter achieves at least 99.97% efficiency at 0.3 micron, maintaining Class 100/ISO 5 cleanliness levels, while antimicrobial-treated surfaces limit contamination risks throughout the OT.

Q: What are the main benefits of using this AHU in a modular operation theatre?

A: Major benefits include exceptional air cleanliness, precise climate control (temperature and humidity), energy-efficient functioning, low noise operation, and ease of customization. It protects patients and staff by minimizing airborne infection risk, while its design suits both new and existing modular OT installations.

Q: When should maintenance or filter replacement be performed on the AHU LESS MODULAR OT?

A: Routine maintenance and filter checks are recommended quarterly or as indicated by the digital control panel. HEPA and other filters should be replaced according to manufacturer guidelines or sooner if pressure drops are detected to sustain optimal filtration efficiency.

Q: Where can the AHU LESS MODULAR OT be installed and used effectively?

A: This AHU is specifically engineered for modular operation theatres but is equally effective in environments that require stringent microbe control and clean air such as cleanrooms or specialized healthcare facilities. Its compact cuboidal shape and customizable dimensions ensure seamless installation in various infrastructure layouts.

Q: What is the process for adjusting temperature and humidity parameters?

A: All climate control settings, including temperature (16C-26C) and humidity (30%-70% RH), are easily managed through the intuitive digital control panel, allowing for real-time monitoring and 1% accuracy in adjustments as per surgery or facility needs.

Q: How does the AHU LESS MODULAR OT contribute to energy efficiency?

A: The AHU uses a Class A energy-efficient motor and is constructed with high-density insulated PUF panels, minimizing energy loss. This, combined with LED lighting and automation options, ensures reduced operational costs and sustainable energy consumption in the OT environment.
